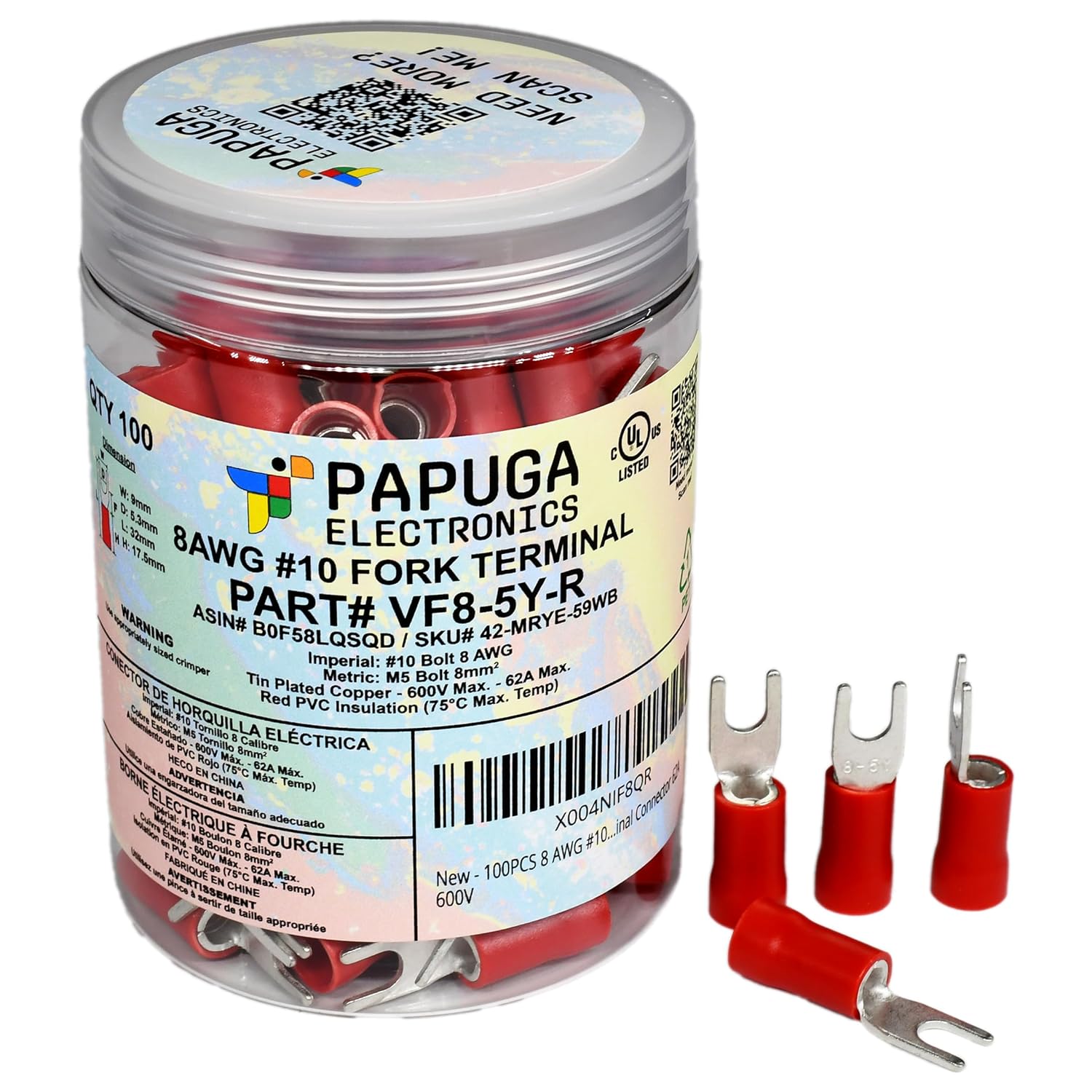

PAPUGA 100PCS 8 AWG (10 mm2) #10 / M5 Insulated Fork Spade Crimp Connector, 600V 62A, UL cUL Industrial Terminal High Current Connector, Electrical Repair
Product details
| Management number | 218144097 | Release Date | 2026/05/03 | List Price | $12.00 | Model Number | 218144097 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
PAPUGA 8 AWG (10 mm2) UL-Rated Insulated Fork (Spade) Crimp Connector Electrical Rating: 600V / 62A Max | Insulation: Red PVC (75 °C) | Certification: UL & cUL Listed (File E357535) This 8 AWG insulated fork (spade) electrical connector is designed for secure, high-current electrical connections in industrial, automotive, marine, and commercial power applications. Manufactured from high-conductivity copper and tin-plated for corrosion resistance, it delivers reliable electrical performance and long service life. The fork (spade) design allows fast installation and removal without fully removing the screw or bolt, making it ideal for maintenance, upgrades, and serviceable connections. Compatible with 8 AWG (≈10 mm2) stranded copper wire, this connector provides a strong mechanical crimp and low-resistance electrical path when properly installed. The connector features durable PVC vinyl insulation rated to 75 °C, helping protect against short circuits, abrasion, and vibration in demanding environments. The insulation may be removed if required for specific applications. Crimping Instructions (Important): With insulation installed, use a crimping tool designed for insulated terminals If insulation is removed, use a crimping tool designed for bare (non-insulated) terminals Always perform a tug test after crimping to confirm a secure connection. Common Applications: Automotive and marine wiring, control panels, machinery, automation systems, power supplies, industrial equipment, and commercial electrical installations.Fit & Installation Note: Before ordering, confirm the selected wire gauge and connection size match your application. Designed for stranded copper wire and proper crimping tools only.✔ FIT & USE CONFIRMATION Matches the selected wire gauge and connector size shown above Designed for stranded wire and proper crimping tools Disconnect power before installation for safety
- WIRE SIZE: Fits 8 AWG (10 mm2) stranded wire.
- FORK SIZE: Fits #10 screw terminals.
- MATERIAL: Tin plated copper for corrosion resistance and reliable conductivity.
- EASY INSTALL: Fork design allows quick attachment and removal without fully removing the screw.
- INSTALLATION: Can be crimped with insulated-terminal tools, or insulation may be removed for use with non-insulated crimpers. Disconnect power before working.
| Color | Red |
|---|---|
| Gauge | 8 |
| Model | VF8-5Y |
| Terminal | Screw Terminal |
| Stud Size | #10, 5mm, M5 |
| Brand Name | Generic |
| Unit Count | 1.0 Count |
| Part Number | VF8-5Y-100 |
| Manufacturer | TAIXING LONGYI TERMINALS CO A |
| Material Type | Copper, Polyvinyl Chloride |
| Connector Type | Fork, Spade |
| Maximum Voltage | 600 Volts |
| Number of Items | 100 |
| Contact Material | Plated Tin |
| Specification Met | UL, cUL, cULus |
| Temperature Rating | 75°C |
| Included Components | 100 × 8 AWG insulated fork spade crimp connectors (#10 / M5) |
| Insulation Material Type | Polyvinyl Chloride |
| Item Dimensions L x W x H | 1.26"L x 0.35"W x 0.33"H |
