Zooz Z-Wave Long Range High Power Relay ZEN78 800LR | Z-Wave Hub Required
Product details
| Management number | 221441740 | Release Date | 2026/05/03 | List Price | $35.90 | Model Number | 221441740 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
NOTE: Dry contact input (NO Voltage on the optional wall switch)SPECIFICATIONS:Model Number: ZEN78 800LRZ-Wave Region: US/CA/MXPower: 120-240 VAC, 60 HzMaximum Load: Resistive Load: 40 A, 9600 W; Inductive Load: 4HP - 5,000 Cycles, 3HP - 20,000 CyclesStandby power consumption: 1WZ-Wave Range: Up to 300 feet line of sight (1300 feet with Z-Wave Long Range enabled)Dimensions: 8.6” x 5.5” x 2”Operating Temperature: 32-104° F (0-40° C)Installation and Use: Indoor only (IPX3) Will it work with my smart speakerSmart speakers are not Z-Wave controllers so you will need a compatible Z-Wave hub to control this device with voice commands.Smart speaker compatible Z-Wave hubs include:Z-Box Hubcompatible with SmartThingsHome Assistant (Z-Wave JS)HomeSeerHubitat

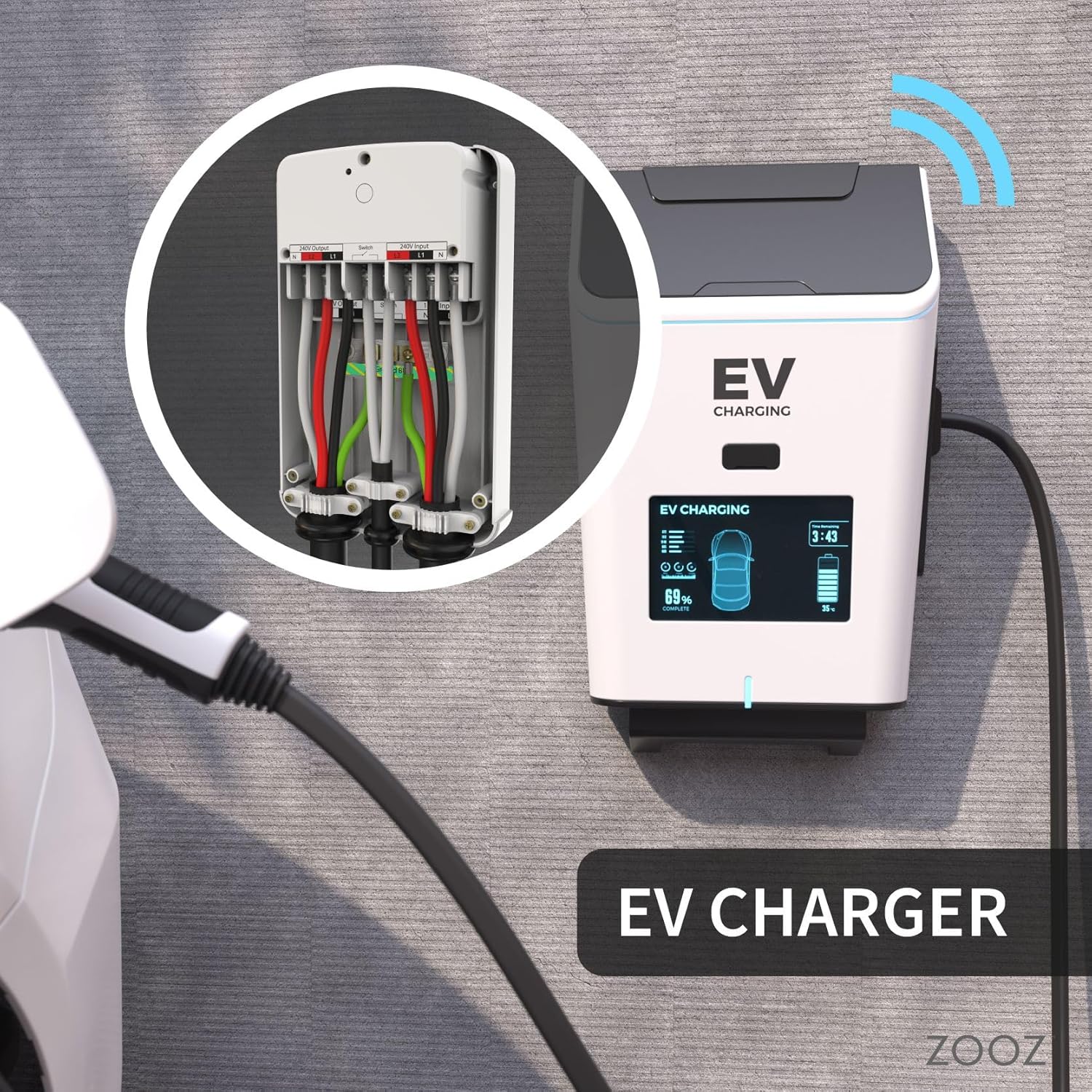

- POWERFUL Z-WAVE CONTROL: On/off control for heavy duty 240 V appliances up to 40 Amps. Great for automating pool pumps, mini split AC's, air compressors, heated driveways, commercial lighting, or EV chargers.
- ENERGY REPORTS: Monitor power use live and over time with reliable Watt, kWh, Amp, and Volt data. Adjust reporting threshold and frequency in the advanced settings if your hub supports this functionality.
- ANALOG INPUT: Connect it to an optional wall switch of your choice (toggle and momentary types supported). No Voltage on input wires! Or use the built-in Z-Wave button for manual on/off control of the connected load.
- Z-WAVE LONG RANGE: Get up to 1300 feet of wireless range and rock-solid direct device-to-hub communication with Z-Wave Long Range if your hub supports it.
- LATEST SECURITY: Equipped with the new S2 authenticated security protocol and SmartStart for instant and safe pairing. SGS certified for electrical safety standards. Lifetime tech support and a 5-year extended warranty if you register your device within 30 days.
- HUB COMPATIBILITY: This relay should work for basic on/off functionality with any certified Z-Wave system (energy / temperature reporting or advanced settings available on selected hubs only). All Zooz devices work best with the Z-Box Hub. It was tested to work well with Hubitat, Home Assistant (Z-Wave JS), HomeSeer and is compatible with SmartThings, Alarm.com, Qolsys panel, and Indigo for basic on/off functionality.
| UPC | 853478006780 |
|---|---|
| Color | White |
| Model | ZEN78 800LR |
| Wattage | 9600 watts |
| Terminal | Screw |
| Brand Name | ZOOZ |
| Unit Count | 1.0 Count |
| Part Number | ZEN78 800LR |
| Switch Type | Rocker |
| Circuit Type | 2-way |
| Contact Type | Normally Open |
| Control Type | Remote |
| Manufacturer | Zooz |
| Material Type | Plastic |
| Mounting Type | Wall Mount |
| Connector Type | Clamp |
| Control Method | Push Button, Remote |
| Current Rating | 40 Amps |
| Operation Mode | ON-OFF |
| Item Dimensions | 8.6 x 5.5 x 2 inches |
| Number of Items | 1 |
| Contact Material | Metal |
| Operating Voltage | 240 Volts |
| Specification Met | FCC |
| Compatible Devices | Z-Box Hub, SmartThings, Home Assistant (Z-Wave JS), HomeSeer, Hubitat, Alarm.com, Qolsys panel, Indigo |
| Included Components | Smart Relay, Installation screws, Wire Connectors, Wire Clamps, User Manual |
| Number of Positions | 2 |
| Connectivity Protocol | Z-Wave |
| Lower Temperature Rating | 32 Degrees Fahrenheit |
| Upper Temperature Rating | 104 Degrees Fahrenheit |
| Compatible with Vehicle Type | Electric Vehicle (EV) |
| International Protection Rating | IPX3 |
| EU Spare Part Availability Duration | 5 Years |
